SAFT

SAFT公司是設計和制造電池工業技術的鋰離子電池，SAFT在可再生能源儲存、運輸和電信網絡市場產品。

LSH20
Lithium-sulfur dioxide (Li-SO2) : LO/G cell ranges
  G04/3 G06/2 G32/3 G36/2 LO34SX
Size AA AA 2/3 A "Long" A 1/3 C
Open Circuit Voltage 3 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.9 V
Nominal capacity (drain) 0.45 Ah?(50 mA) 0.95 Ah?(80 mA) 0.8 Ah (80 mA) 1.7 Ah (80 mA) 0.86 Ah (80 mA)
Max. recom. Cont. Current 0.25 A 0.5 A 0.75 A 1.5 A 1.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 14.2 mm 14.2 mm 16.3 mm 16.3 mm 25.9 mm
Length max 27.9 mm 50.3 mm 34.5 mm? 57.7 mm? 20.3 mm?
Weight 8 g 15 g 12 g 18 g 18 g
Transport Non restricted Non restricted Non restricted Non restricted Non restricted
  LO35SX G52/3 LO29SHX G54/3 LO43SHX
Size 2/3 C C C 5/4 C 5/4 C
Open Circuit Voltage 3 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 2.2 Ah (650 mA) 3.2 Ah (1.0 A) 3.75 Ah (0.25 A) 5.0 Ah (0.2 A) 5.0 Ah (0.2 A)
Max. recom. Cont. Current 2.0 A 2.5 A 2.5 A 2.5 A 2.5 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 25.9 mm 25.6 mm 25.6 mm 25.6 mm 26.0 mm
Length max 35.9 mm 49.5 mm 50.4 mm 60.2 mm 59.2 mm
Weight 30 g 47 g 40 g 58 g 53 g
Transport Non restricted Class 9 Class 9 Class 9 Class 9

  LO40SX LO30SHX G26 LO26SX LO26SHX
Size 2/3 "Thin" D "Thin" D D D D
Open Circuit Voltage 3 V 3 V 3.0 V 3.0 V 3.0 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 3.5 Ah (0.12 A) 5.75 Ah (0.2 A) 7.75 Ah ??(0.25 A) 7.75 Ah?(0.25 A) 7.5 Ah (0.25 A)
Max. recom. Cont. Current 2.0 A 3.0 A 2.5 A 2.5 A 4.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 28.95 mm 29.1 mm 34.5 mm 34.2 mm 34.2 mm
Length max 42.29 mm 59.9 mm 59.8 mm? 59.3 mm 59.3 mm
Weight 40 g 63 g 85 g 85 g 85 g
Transport Class 9 Class 9 Class 9 Class 9 Class 9
  LO26SXC LO25SX LO39SHX G22/6 G62/1
Size D "Fat" D F DD "Long Fat DD"
Open Circuit Voltage 3.0 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 9.2 Ah?(0.25 A) 8.0 Ah (0.27 A) 11.5 Ah (1 A) 16.5 Ah (0.5 A) 34.0 Ah (1.0 A)
Max. recom. Cont. Current 2.5 A 2.5 A 3.0 A 3.0 A 3.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C *
Outside diameter max 34.2 mm 39.5 mm 31.9 mm 33.3 mm 41.7 mm
Length max 59.3 mm 50.3 mm 100.3 mm 120.6 mm 141 mm
Weight 85 g 96 g 125 g 175 g 300 g
Transport Class 9 Class 9 Class 9 Class 9 Class 9

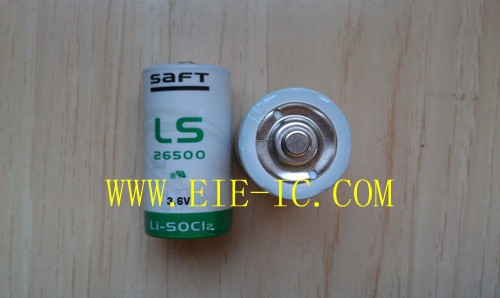

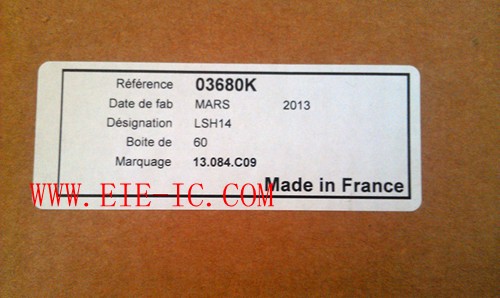

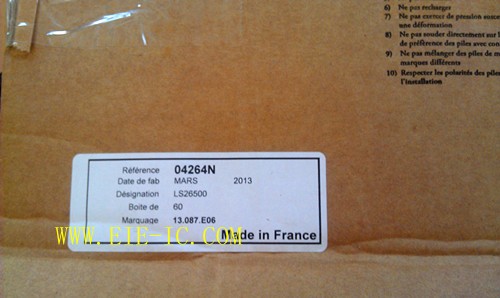

LSH14-SAFT ls26500-saft
Lithium-thionyl chloride (Li-SOCl2) : LSH cell range
  LSH14 LSH14 LSH20 LSH20-150
Cell type constuction C C D D
Open Circuit Voltage 3.67 V 3.67 V 3.67 V 3.67 V
Nominal Voltage 3.6 V 3.6 V 3.6 V 3.6 V
Nominal capacity (drain) 5.8 Ah (15 mA) 3.6 Ah (15 mA) 13.0 Ah (15 mA) 14.0 Ah (300 mA)
Max. recom. Cont. Current 1.3 A 1.3 A 1.8 A Consult Saft
Operating temp. range -60/+85°C * -60/+85°C * -60/+85°C * -40/+150°C
Outside diameter max 26.0 mm 26.0 mm 33.4 mm 32.05 mm
Length max 50.4 mm 50.4 mm 61.6 mm 61.7 mm
Weight 51 g 51 g 100 g 104.5 g
Transport Restricted
(Class 9)		 Non-restricted Restricted
(Class 9)		 Restricted
(Class 9)
Lithium-thionyl chloride (Li-SOCl2) : LS-W cell range
  LS14250W LS14500W
Cell type constuction ?AA AA
Open Circuit Voltage 3.67 V 3.67 V
Nominal Voltage 3.6 V 3.6 V
Nominal capacity (drain) 1.2 Ah (1 mA) 2.6 Ah (2 mA)
Max. recom. Cont. Current 20?mA 30 mA
Operating temp. range -60/+95°C* -60/+95°C*
Outside diameter max 14.55mm 14.65mm
Length max 25.15mm 50.3mm
Weight 8.9 g 16.7 g
Transport Non-restricted Non-restricted
Lithium-thionyl chloride (Li-SOCl2) : Li-SOCl2?civil battery packs
LS14250MLB LS9V Lithopack
Cell type constuction 1s1p LS14250 3s1p LS 14250 2s1p LS 14500
Open Circuit Voltage 3.67 V 11.0 V 7.3 V
Nominal Voltage 3.6 V 9.0 V 7.2 V
Rated capacity 1.2 Ah 1.2 Ah 2.6 Ah
Max. dimensions 16.8x28.6 mm 49.1x46.8x26.8 mm 56.6x31.6x17.3 mm
Typical weight 15 g 29 g 34 g
Typical applications Metering, Professional electronics Memory back-up, Metering Memory back-up

Lithium-thionyl chloride (Li-SOCl2) : LS cell range










            BATTERY CHARACTERISTICS
            LS14250
            LS14500
            LS14500C
            LS14500Ex




            Size
            ? AA
            ?AA
            AA
            AA




            Open Circuit Voltage
            3.67 V
            ?3.67 V
            3.67 V
            3.67 V




            Nominal Voltage
            3.6 V
            ?3.6 V
            3.6 V
            3.6 V




            Nominal capacity (drain)
            1.2 Ah (1 mA)
            ?2.6 Ah (2 mA)
            2.7 Ah (2 mA)
            2.6 Ah (2 mA)




            Max. recom. Cont. Current
            35 mA
            ?50 mA
            25?mA
            50?mA




            Operating temperature range
            -60/+85°C*
            ?-60/+85C*
            -60/+70°C*
            -60/+85°C*




            Outside diameter max
            14.55 mm
            ?14.55 mm
            14.65 mm
            14.55 mm




            Length max
            25.15 mm
            ?50.3 mm
            50.3 mm
            50.3?mm




            Weight
            8.9 g
            ?16.7 g
            16.2 g
            16.7 g




            Transport
            Non-restricted
            ?Non-restricted
            Non-restricted
            Non-restricted




            Production site
            UK, F, PRC
            ?UK, F, PRC
            F
            UK, PRC












saft

          ls14500









            LS17330
            LS17500
            LS26500
            LS33600
            LS33600C




            2/3 A
            ?A
            C
            D
            D




            3.67 V
            3.67 V
            3.67 V
            3.67 V
            3.67 V




            3.6 V
            3.6 V
            3.6 V
            3.6 V
            3.6 V




            2.1 Ah (3 mA)
            3.6?Ah (3 mA)
            7.7 Ah (4 mA)
            17.0 Ah (5 mA)
            18.5 Ah (1 mA)




            25?mA
            100?mA
            150 mA
            250 mA
            80 mA




            -60/+85°C*
            -60/+85°C*
            -60/+85°C*
            -60/+85°C*
            -60/+70°C*




            16.55 mm
            17.13 mm
            26.0 mm
            33.4 mm
            33.4 mm




            33.4 mm
            50.9?mm
            49.1 to 50.4 mm***
            60.2 to 61.6 mm***
            60.2 to 61.6 mm***




            14.4?g
            21.9?g
            48 g
            90 g
            90 g




            Non-restricted
            Non-restricted
            Restricted (Class 9)
            Restricted (Class 9)
            Restricted (Class 9)




            UK
            F



















Lithium-manganese dioxide (Li-MnO2) : LM/M cell ranges














          LM spiral cells
          LM17130
          LM22150
          M49
          M52HR
          M56




          Size
          1/3 A
          1/3 sub-C
          3/4 sub-C
          C
          5/4 C




          Open circuit Voltage
          3.2 V
          3.2 V
          3.2 V
          3.2 V
          3.2 V




          Nominal voltage
          3.0 V
          3.0 V
          3.0 V
          3.0 V
          3.0 V




          Nominal capacity (drain; 2,0 V cut off)
          0.5 Ah (4.5 mA)
          0.9 Ah (40 mA)
          1.6 Ah (80 mA)
          4.8 Ah (150 mA)
          6.7 Ah (150 mA)




          Max. recom. Cont. Current
          0.3 A
          0.4 A
          0.3 A
          2.0 A
          2.5 A




          Operating temp. Range
          -40/+70°C
          '-40/+70°C
          '-40/+70°C
          '-40/+70°C
          '-40/+70°C




          Outside diameter max
          16.7 mm
          22.8 mm
          22.5 mm
          26.2 mm
          26.2 mm




          Height max
          16.6 mm
          17.3 mm
          32.0 mm
          51.5 mm
          61.5 mm




          Weight
          8 g
          15 g
          24 g
          59 g
          70 g




          Transport
          Non restricted
          Non restricted
          Non restricted
          Class 9
          Class 9












            LM spiral cells
            M19
            LM33550
            M20
            M20HR
            M24HR
            M62




            Size
            "Short" D
            D
            D
            D
            DD
            "Big" DD




            Open circuit Voltage
            3.2 V
            3.2 V
            3.2 V
            3.2 V
            3.2 V
            3.2 V




            Nominal voltage
            3.0 V
            3.0 V
            3.0 V
            3.0 V
            3.0 V
            3.0 V




            Nominal capacity (drain; 2,0 V cut off)
            10.3 Ah (450 mA)
            13.0 Ah (250 mA)
            12.6 Ah (150 mA)
            11.5 Ah (0.5 A)
            20.0 Ah (2.0 A)
            33.0 Ah (1.6 A)




            Max. recom. Cont. Current
            3.0 A
            4.0 A
            3.5 A
            4.0 A
            6.0 A
            6.0 A




            Operating temp. Range
            -40/+70°C
            -40/+70°C
            -40/+70°C
            -40/+70°C
            -40/+70°C
            -40/+70°C




            Outside diameter max
            33.5 mm
            34.2 mm
            34.2 mm
            34.2 mm
            33.5 mm
            42.5 mm




            Height max
            58.5 mm
            61.4 mm
            61.5 mm
            61.5 mm
            110.5 mm
            133.0 mm




            Weight
            105 g
            120 g
            117 g
            117 g
            201 g
            355 g




            Transport
            Class 9
            Class 9
            Class 9
            Class 9
            Class 9
            Class 9












SAFT
